بررسی تخصصی

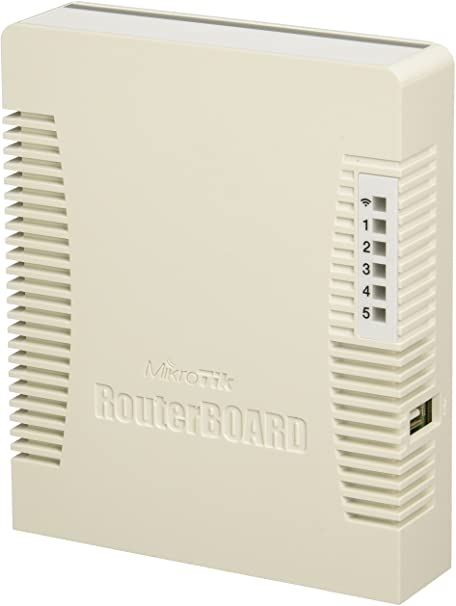

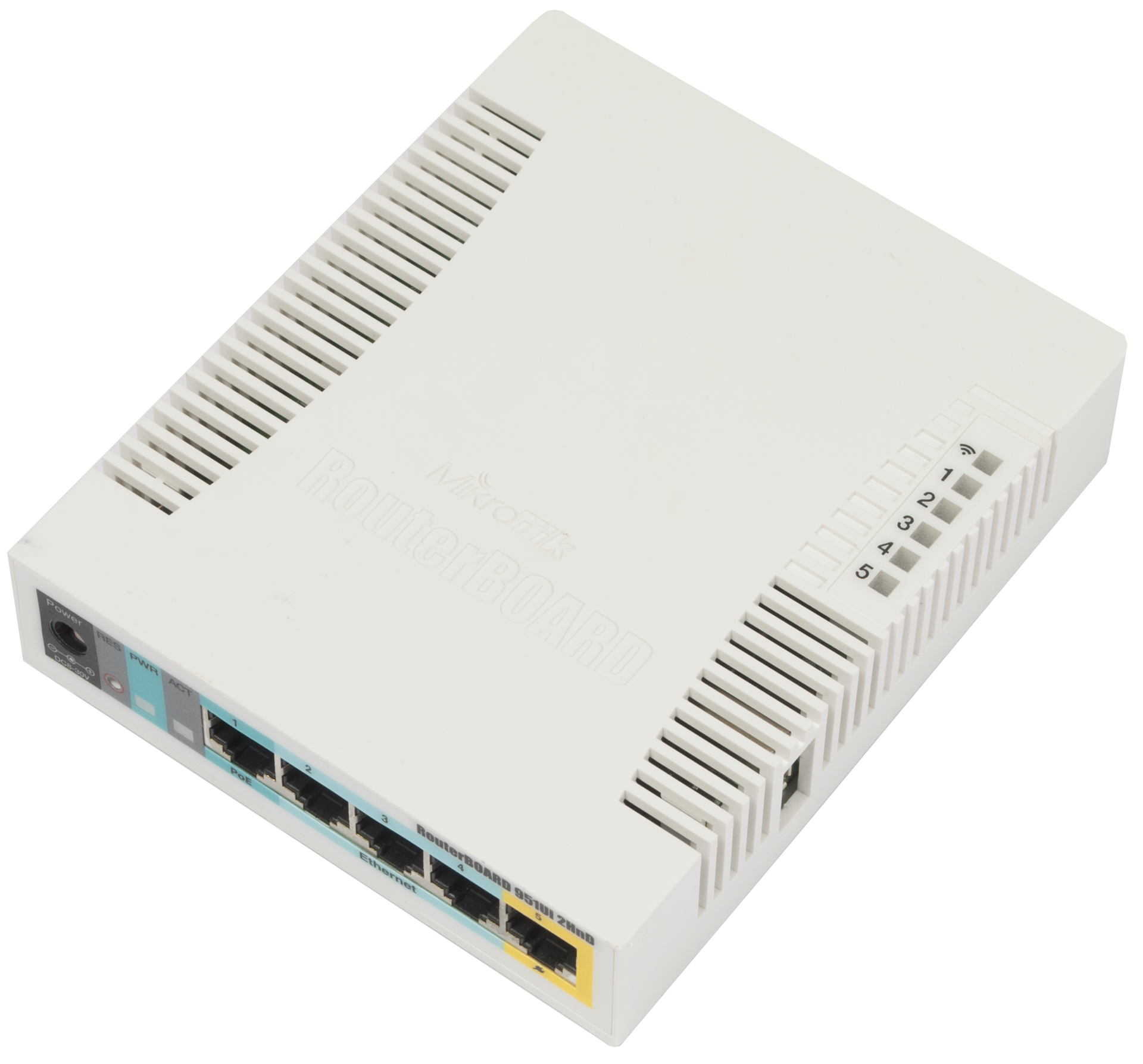

روتر میکروتیک مدل ROUTER MICROTIK RB 951 UI 2HND
RB951Ui-2HnD یک SOHO AP بی سیم با نسل جدید CPU Atheros و قدرت پردازش بیشتر است.

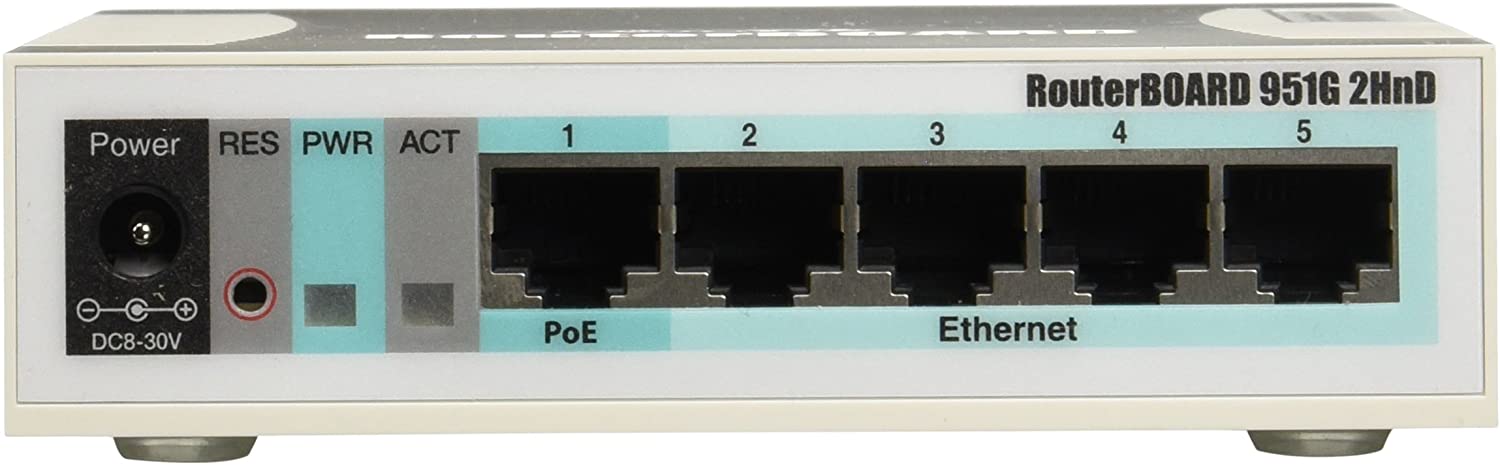

دارای پنج پورت اترنت، یک پورت USB 2.0 و یک AP بی سیم با قدرت بالا 2.4 گیگاهرتز
802.11b/g/n با آنتن داخلی.

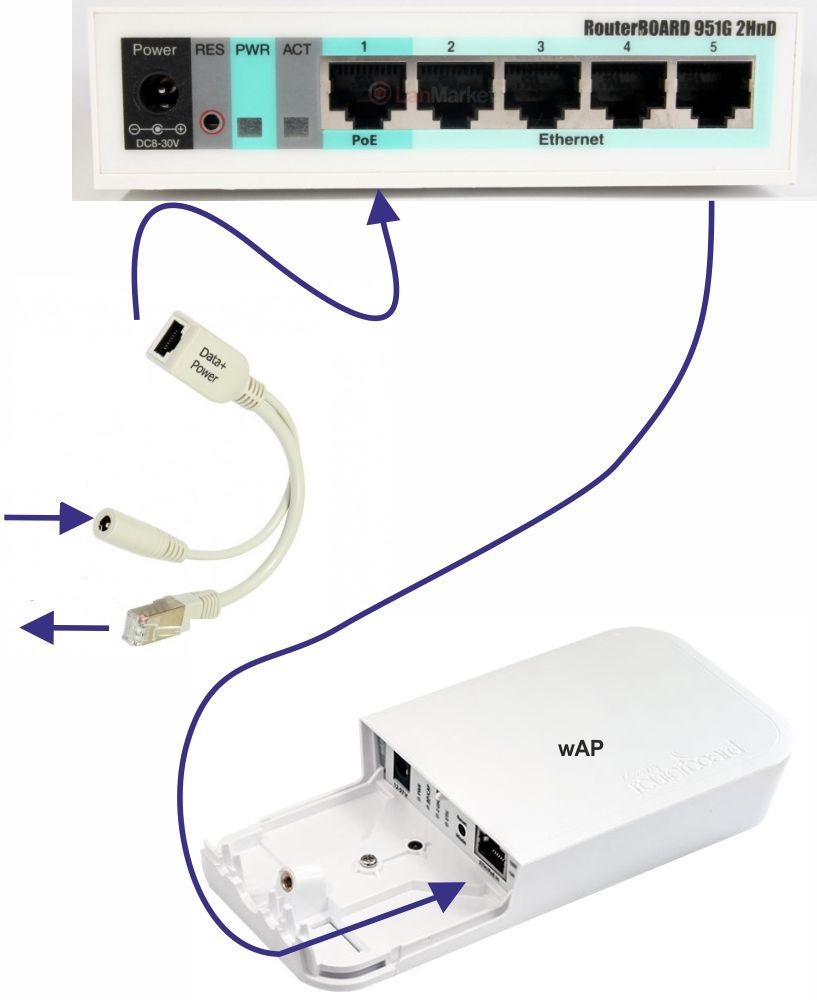

دارای یک CPU 600 مگاهرتز، 128 مگابایت رم و عملکرد خروجی PoE برای درگاه شماره 5 است
می تواند دستگاه های دیگر دارای قابلیت PoE را با همان ولتاژ اعمال شده به واحد تغذیه کند.
حداکثر بار روی پورت 500 میلی آمپر است.
بسته حاوی RouterBOARD 951Ui-2HnD در یک کیس پلاستیکی و آداپتور برق است.
Details | |
---|---|
Product code | RB951Ui-2HnD |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 113x138x29mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -20C +60C |
Suggested price | $59.95 |
Wireless capabilities
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | AR9344 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 8-30 V |
Max power consumption | 24 W |
Max power consumption without attachments | 7 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 8-30 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether5 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 500 mA |
Max total out (A) | 500 mA |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 30 | -96 |
54MBit/s | 25 | -80 |
MCS0 | 30 | -96 |
MCS7 | 23 | -78 |
